Kubota KX057 Midi Excavator

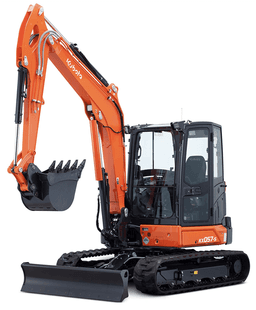

The 2018 Kubota KX057 is a medium mini excavator weighing about 13,000lbs with an overall width of 6 ft. 5 in. Equipped with hydraulic thumb and rubber tracks. This is not a zero turn machine, so it does have some over hang when turning to the side. It is great for digging, grading, breaking concrete, picking up rock, compacting soil and so much more. Can be towed with at least a 1/2 ton Pickup Truck or SUV.

Attachments (see specifications for sizes):
Digging buckets
Grading buckets
Rock Grapple
Auger and bits
Sheeps-foot compactor
Concrete breaker
Wire wheel

Checking availability...


13,051 lbs
Max Reach
20 ft.
Engine Power
47.6 hp
Digging Depth
12 ft. 9 in.
Overall Width
6 ft. 5 in.
Overall Height
8 ft. 4 in
Overall Length
18 ft 1 in
Grading Bucket Width
12 in, 36 in
Digging Bucket Widths
12 in, 18 in, 24 in, 30 in, 36 in
Auxiliary Hydraulic Flow
Aux 1: 19.8 gpm, Aux 2: 9.8 gpm
Auger Bit Diameters (all 36 in long)
9 in, 12 in, 18 in, 30 in
Angle Blade
4 way
Rock Grapple
diameter up to 36 in.
Concrete Breaker
4 ton
Wire Wheel Width
24 in.
Sheepsfoot Compactor
24 in. wide
